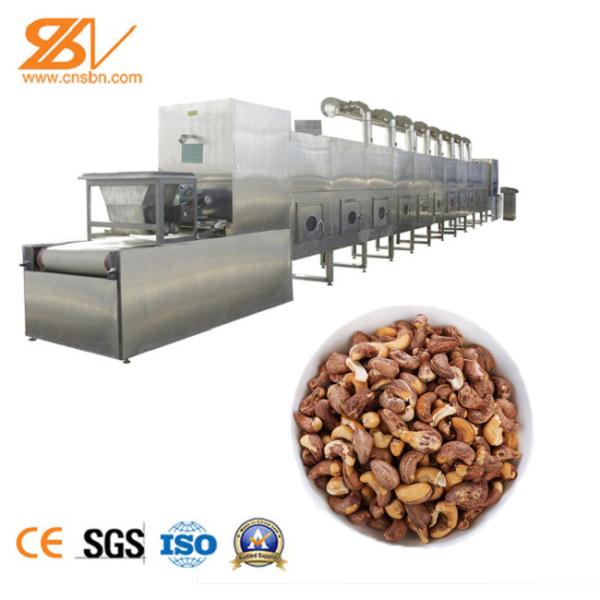

Industry Peanut Dried Fruit Microwave Equipment Sterilization Machine
1. Introduction
1. The microwave field energy distribution is uniform, the penetration is strong, and the heating speed is fast. Good thermal and non-thermal effects, achieving ultra-low temperature deep sterilization, maximizing the natural flavor and nutrients in dried fruits.
2. Perfect mechatronic design, real-time monitoring of various sensors, and infrared temperature display system is safe and reliable.
3. Optional PLC program control, perfect man-machine interface operation, more rich, flexible and convenient operation, simpler maintenance.
4. Set the processing temperature range as needed, control the whole process, and strictly control the temperature of the material.
2. Application
Applications of microwave drying sterilization machine:
1. chemical material,medicine tablet or pill,such as watered pills,water-honey bolus,honeyed bolus,condensed pill and Tibetan pill,etc.
2. all kinds of teas,herbs, flowers, green leaves,etc.
3. various dried meat, like beef, pork, chicken,duck, fish etc.
4. powder for various material,such as spices, other food additives.
5. agricultural products,such as china date,nuts,grains,peanut,etc
6. snack food, fruit seeds, grains, peanuts, chips,etc.
3. The main components microwave dryer
1. Microwave generator syster
2. Microwave box
3.Temperature controlling system
4. Humidity controlling system
5.Transmission system
6. PLC and touch screen control system
7. Humidity discharging system
8. Electrical cabinets
9. Cooling system
10. Hot air recycling and circulatory system
4. Equipment Parameters
| Technical data of microwave drying and sterilizing equipment models |
| Models | Working | Input Power | Microwave Output | Size | Dehydrated | Sterilization |
| Frequency | (no more than) | Power(no less than) | (mm) | Level (no less than) | Capacity |
| SBN-12 | 2450MHz | 18kw | 12kw | 7200x650x1800 | 12kg/hr | 100-150kg/hr |
| SBN-15 | 2450MHz | 20kw | 15kw | 8300x720x1800 | 15kg/hr | 120-180 kg/hr |
| SBN-20 | 2450MHz | 26kw | 20kw | 8500x750x1800 | 20kg/hr | 180-250 kg/hr |
| SBN-30 | 2450MHz | 36kw | 30kw | 10500x950x2000 | 30kg/hr | 280-350 kg/hr |
| SBN-40 | 2450MHz | 46kw | 40kw | 10500x1050x2000 | 40kg/hr | 380-450 kg/hr |
| SBN-50 | 2450MHz | 58kw | 50kw | 12200x1200x2000 | 50kg/hr | 480-550 kg/hr |
| SBN-60 | 2450MHz | 68kw | 60kw | 13500x1200x2000 | 60kg/hr | 500-600 kg/hr |
| SBN-70 | 2450MHz | 78kw | 70kw | 13500x1550x2000 | 70kg/hr | 700-800 kg/hr |
| SBN-80 | 2450MHz | 90kw | 80kw | 15500x1550x2000 | 80kg/hr | 800-900 kg/hr |
| SBN-100 | 2450MHz | 110kw | 100kw | 16500x1750x2000 | 100kg/hr | 1000-1200kg/hr |
5. Our company
Saibainuo Machinery Company is a leading manufacturer of high quality Twin Screw Extruders for food industries.
Working with our customers providing specialist designs and partical solutions for a wide range of process need. We have been supplying the most efficent equipment avaliable to snacks food manufactures around world. A comprehesive range from mixers to extruders, ovens, flavors offers various tastes and easy to operate designs which lead the industry. We can keep product design in the same level with internationally advanced technology cosistently.
